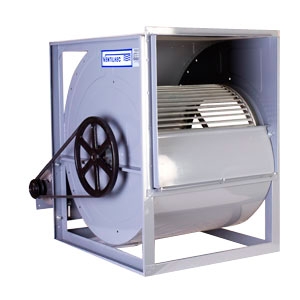

Entrada simples e dupla centrífuga
- Turbina balanceada por computadora
- Bajo Nivel de Ruido.
- Para Alta Caída de Presión Externa
- Opcional con motores aprueba de explosión.
- Aplicación en Campanas de cocinas, Estacionamientos, Industria en General, Talleres, etc.
Extractor Turbina Entrada Sencilla
| Modelo | Capacidad (Nominal) | Motor | Dimensiones | Peso | |||||
|---|---|---|---|---|---|---|---|---|---|
| PCM | M3/h | Largo (A) | Ancho (B) | Altura (C) | Descarga Ancho (D) | Descarga Largo (E) | |||
| VT-1010-S | 1000 | 1698 | 1/4 HP | 34.29 | 22.86 | 41.91 | 17.78 | 25.4 | 25 |
| VT-1612-S | 1600 | 2718 | 1/4 HP | 45.56 | 18.097 | 60.8 | 35.56 | 35.4 | 29 |
| VT-2012-S | 2000 | 3396 | 1/3 HP | 45.56 | 18.097 | 60.8 | 35.56 | 35.4 | 30 |
| VT-2516-S | 2500 | 4248 | 1/3 HP | 59.05 | 54.61 | 74.45 | 45.085 | 45.4 | 42 |
| VT-3016-S | 3000 | 5094 | 1/2 HP | 59.05 | 54.61 | 74.45 | 45.085 | 45.4 | 42 |
| VT-3216-S | 3200 | 5436 | 3/4 HP | 59.05 | 54.61 | 74.45 | 45.085 | 45.4 | 43 |
| VT-3719-S | 3700 | 6282 | 1/2 HP | 66.67 | 60.96 | 78.74 | 52.07 | 50.8 | 52 |
| VT-4119-S | 4100 | 6966 | 3/4 HP | 66.67 | 60.96 | 78.74 | 52.07 | 50.8 | 53 |
| VT-4319-S |
4300 |
7302 | 1 HP | 66.67 | 60.96 | 78.74 | 52.07 | 50.8 | 53 |
| VT-4524-S | 4500 | 7644 | 1/2 HP | 88.9 | 54.29 | 101.996 | 44.053 | 74.77 | 88 |
| VT-5024-S | 5000 | 8496 | 3/4 HP | 88.9 | 54.29 | 101.996 | 44.053 | 74.77 | 91 |
| VT-5624-S | 5600 | 9516 | 1 HP | 88.9 | 54.29 | 101.996 | 44.053 | 74.77 | 94 |
| VT-8028-S | 9000 | 15291 | 1 HP | 107.95 | 54.29 | 122.991 | 44.053 | 86.995 | 101 |
| VT-9028-S | 9500 | 16141 | 1.5 HP | 107.95 | 54.29 | 122.91 | 44.053 | 86.995 | 104 |
| VT-1328-S | 10500 | 17839 | 3 HP | 107.95 | 54.29 | 122.91 | 44.053 | 86.995 | 108 |
Extractor Turbina Entrada Doble
| Modelo | Capacidad (Nominal) | Motor | Dimensiones | Peso | |||||
|---|---|---|---|---|---|---|---|---|---|
| PCM | M3/h | Largo (A) | Ancho (B) | Altura (C) | Descarga Ancho (D) | Descarga Largo (E) | |||
| VT-306 | 300 | 510 | 1/40 HP | 27.7 | 19.53 | 28.971 | 13.493 | 10.47 | 9 |
| VT-2000 | 2000 | 3396 | 1/8 HP | 34.8 | 29.8 | 42.5 | 24.6 | 15.001 | 13 |
| VT-3012 | 3000 | 5094 | 1/4 HP | 45.48 | 43.49 | 60.8 | 35.718 | 35.28 | 29 |
| VT-3612 | 3600 | 6114 | 1/3 HP | 45.48 | 43.49 | 60.8 | 35.718 | 35.28 | 29 |
| VT-4516 | 4500 | 7644 | 1/ HP | 58.97 | 54.5 | 74.45 | 45.085 | 45.4 | 41 |
| VT-5216 | 5200 | 8832 | 3/4 HP | 58.97 | 54.5 | 74.45 | 45.085 | 45.4 | 42 |
| VT-6519 | 6500 | 11040 | 3/4 HP | 66.71 | 60.8 | 78.74 | 52.07 | 50.8 | 51 |
| VT-7119 | 7100 | 12060 | 1 HP | 66.71 | 60.8 | 78.74 | 52.07 | 50.8 | 52 |
| VT-1124 | 11000 | 18690 | 1.5 HP | 89.01 | 81.3 | 102 | 43.97 | 74.77 | 88 |
| VT-1328 | 13000 | 22080 | 1.5 HP | 107.95 | 97.313 | 122.991 | 86.042 | 86.995 | 115 |
| VT-1628 | 16000 | 27186 | 2 HP | 107.95 | 97.313 | 122.991 | 86.042 | 86.995 | 119 |
| VT-1828 | 18000 | 30582 | 3 HP | 107.95 | 97.313 | 122.991 | 86.042 | 86.995 | 122 |
| VT-2118 | 21000 | 35682 | 5 HP | 107.95 | 97.313 | 122.991 | 86.042 | 86.995 | 137 |
